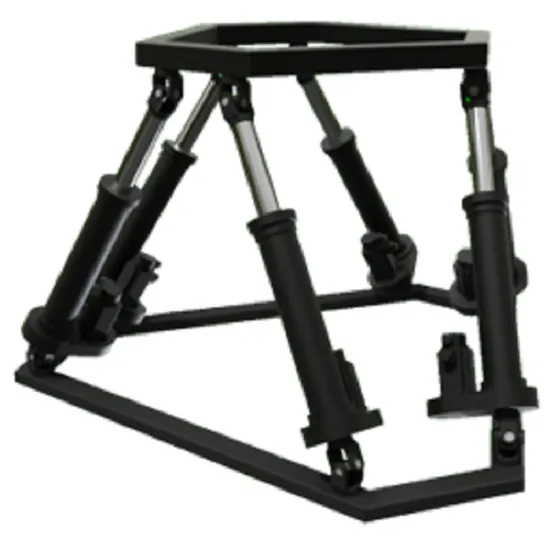

Hexapod Motion Simulating Platform 6 Dof Motion Base Stewart Mechanism Ship Simulator for Wholesale

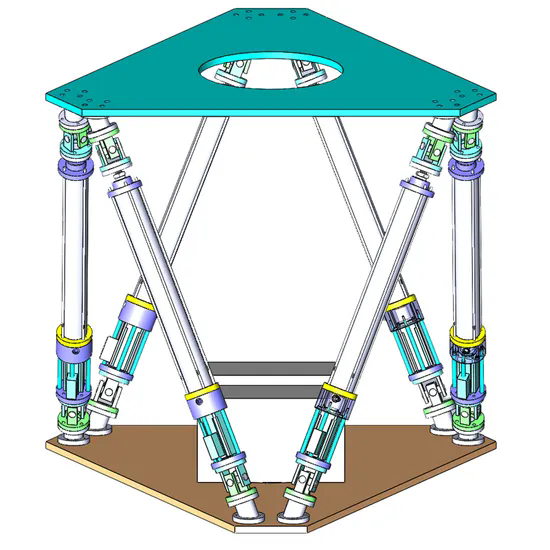

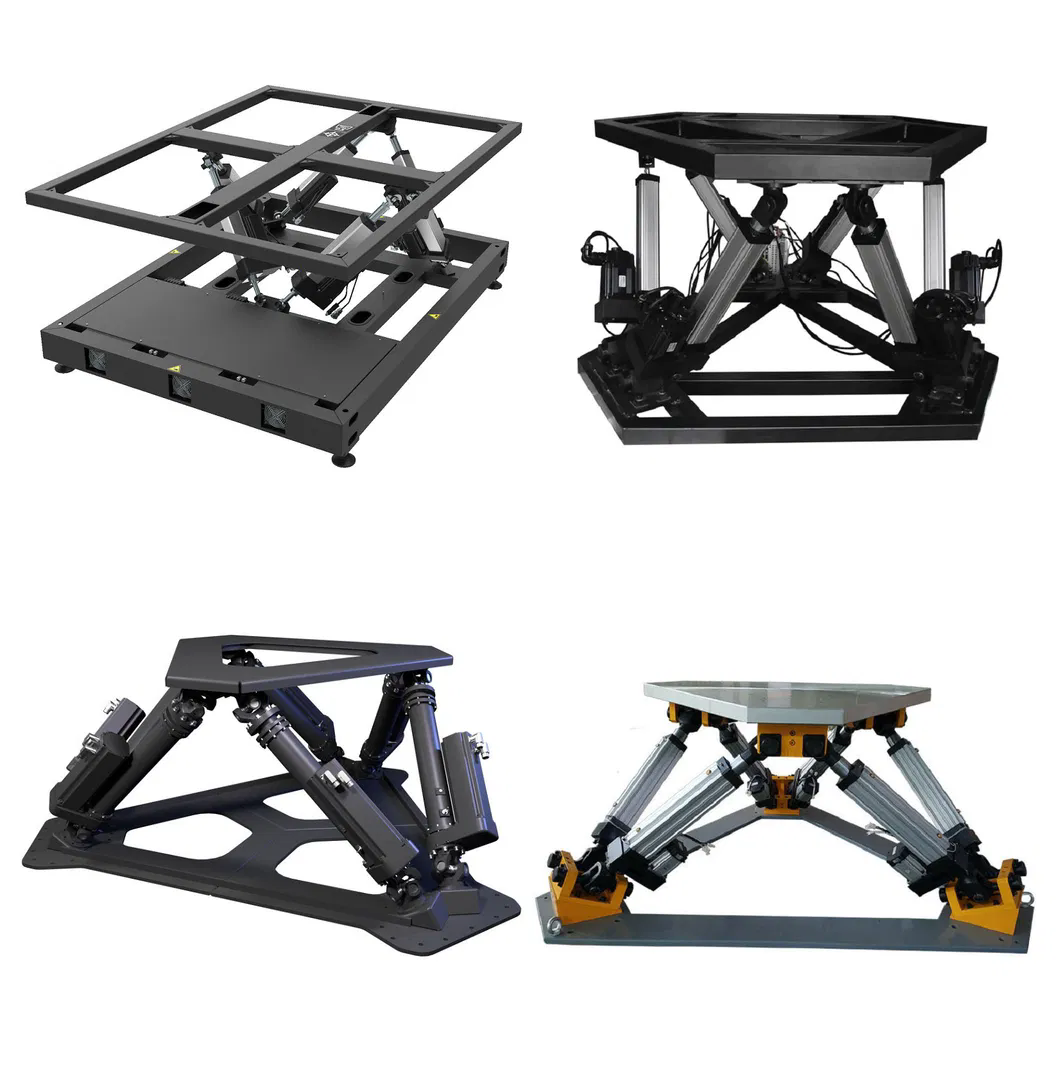

The 6 Degrees Of Freedom Platform, also known as the Stewart Electric Cylinder Platform, model DGR-6D, consists of six moving cylinders, six universal dumpling chains at the top and bottom, and two structural platforms.

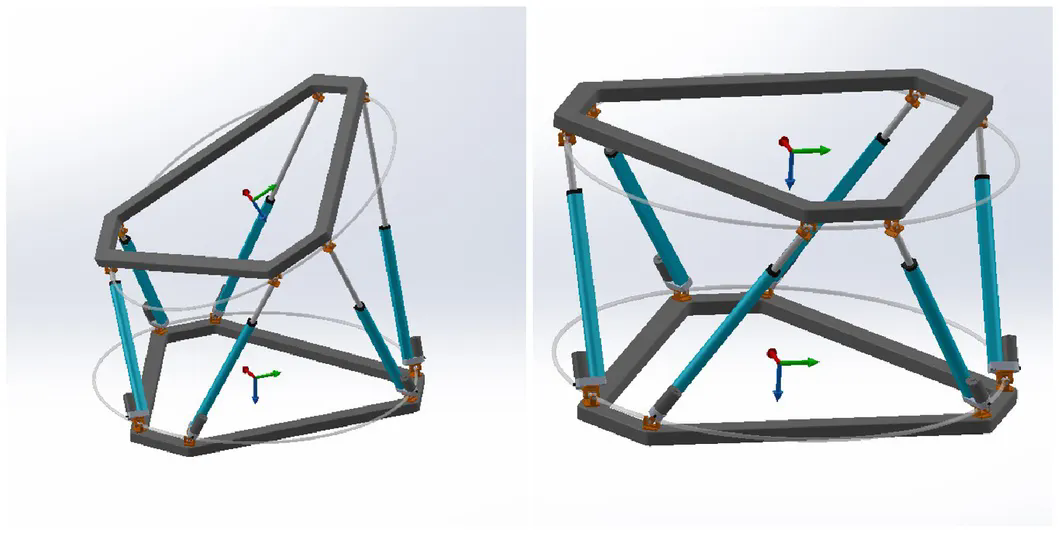

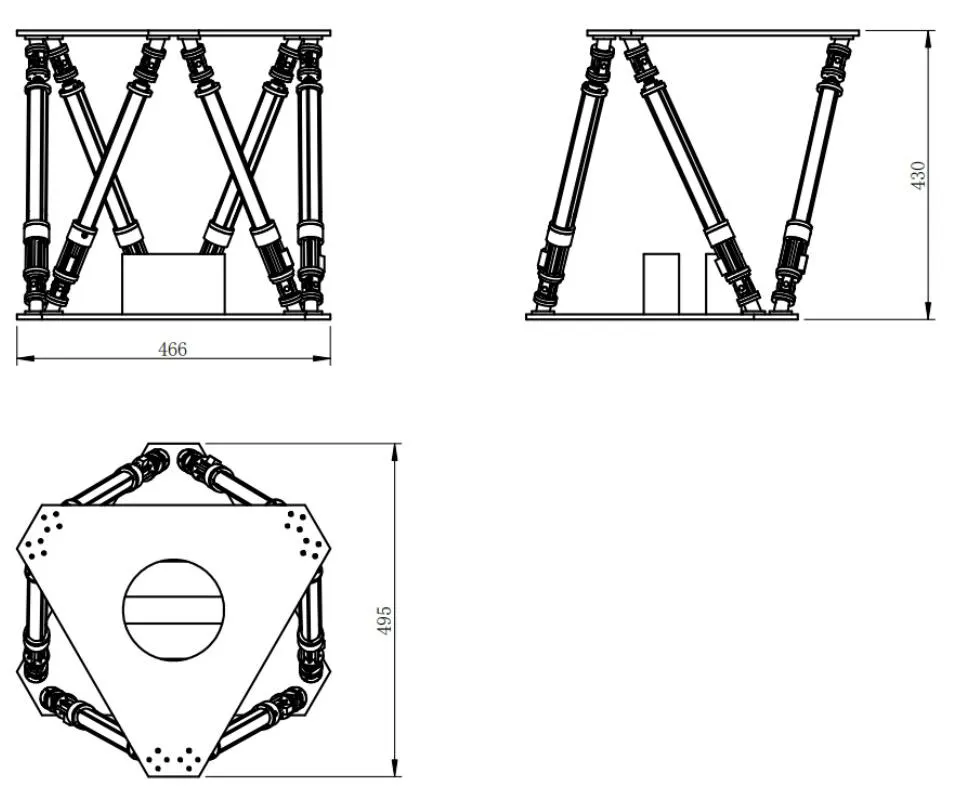

The lower platform of the 6D freedom motion platform is securely fixed on the foundation. Through the controlled telescopic movement of the six support cylinders, the upper platform achieves complete 6 Degrees of Freedom in spatial movement (X, Y, Z, α, β, γ).
Control System Overview
The control system of the 6D motion simulation platform integrates an HS servo driver, Mbox motion controller, industrial computer, electrical cabinet, and high-spec connecting cables.
HS Servo Driver Key Functions:
- CAN bus motion control: Supports position, speed, and torque control with smooth mode switching.
- Fast current loop processing: Features floating-point CLA kernel for dynamic tracking performance.
- RS485 communication: Supports MODBUS protocol for direct interfacing with host computers and touchscreens.
- CAN bus interface: Includes built-in proprietary protocol convenient for customization.
- Flexible control ports: Supports software allocation, logical settings, and programmable filtering.
- Dual analog outputs: Enables real-time monitoring of internal driver status for debugging.
- Electromagnetic brake control: Built-in safety logic providing dynamic protection against accidental falls.
Mbox Motion Controller Key Functions:
- Ethernet interface: High scalability with streamlined on-site wiring.
- 6-way ADC input: Compatible with upper controller WffiS for DAC board mode control.
- 12 digital outputs: Programmable digital special effects control.
- 2-way analog output: Continuous, delicate simulation control.
- 8-channel digital input: Multifunctional application interface.
- Soft limit switch support: Infinite switch mode support with upper soft limits.
- Local diagnostics: RS232 interface for real-time monitoring of motion control.
- Flexible networking: Multi-group motion control over Ethernet via MODBUS protocol.
*Note: The above data is for reference. Non-standard custom designs can be developed according to customer requirements.
Specification
Rated Load Capacity: 5KG - 20,000KG
| Movement | Max. Displacement / Angle | Max. Speed | Acceleration | Reciprocating Precision |
|---|---|---|---|---|
| UP / DOWN | ±600mm | ±500mm/s | ±5.0m/s² | ±0.05mm |
| Back - Forward | ±600mm | ±500mm/s | ±5.0m/s² | ±0.05mm |
| Left - Right | ±600mm | ±500mm/s | ±5.0m/s² | ±0.05mm |
| Pitch | ±25° | ±40°/s | ±400°/s² | ±0.01° |
| Roll | ±25° | ±40°/s | ±400°/s² | ±0.01° |
| Yaw | ±25° | ±40°/s | ±400°/s² | ±0.01° |
Features
1. Closed-Loop Servo Control
Fully digital closed-loop servo control system with professional motion control card ensures exceptionally smooth motion and high simulation fidelity.
2. Modular & Flexible Integration
Modular structure allows customizable combinations and seamless system integration tailored to diverse operational needs.
3. High Precision & Efficiency
Optimized high-precision transmission configuration delivers maximum mechanical output with total system efficiency up to 85%.

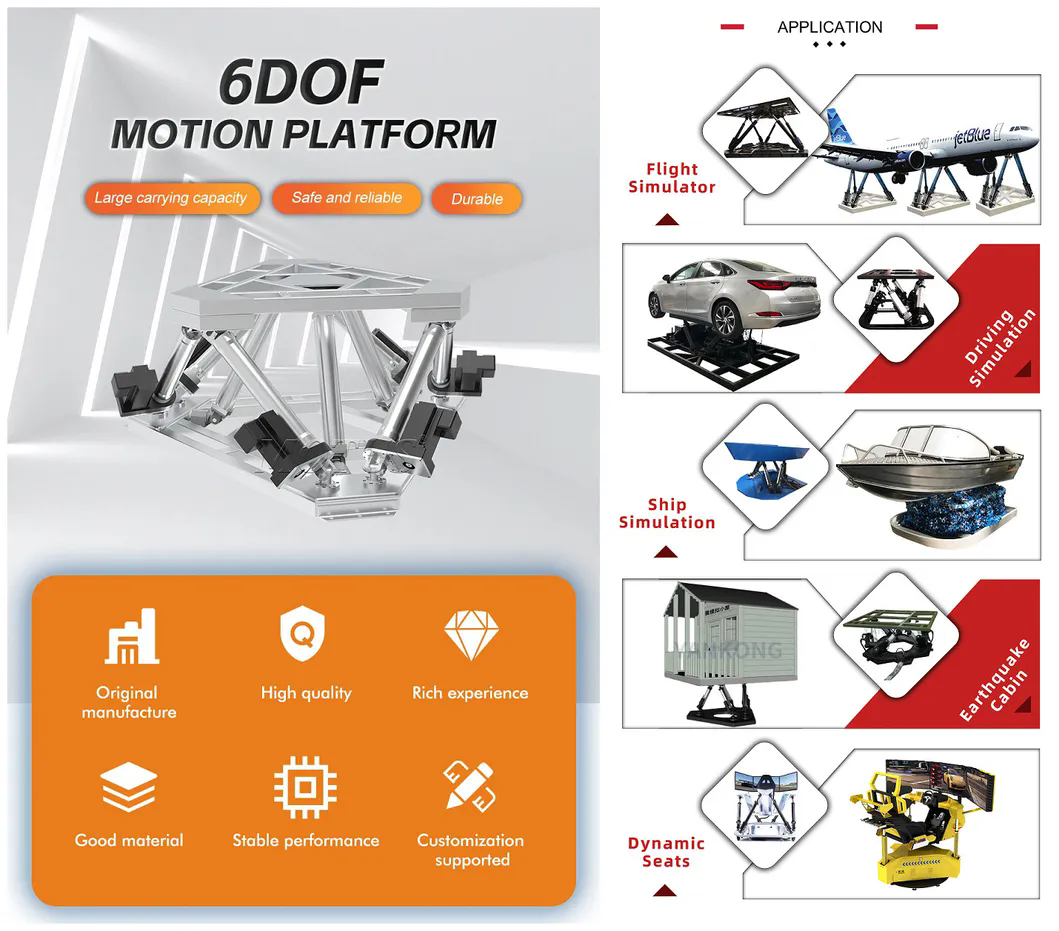

Applications
The 6D Motion Base is widely applied in various scenarios requiring simulation of 6 degrees of freedom spatial movement:

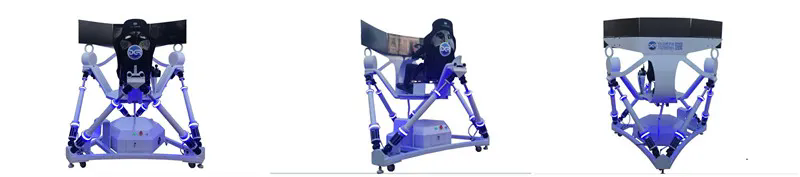

- Virtual Reality Platforms: Flight simulators, ship/vessel simulators, naval helicopter takeoff/landing platforms, tank simulators, car driving systems, train simulators, earthquake simulation, and dynamic entertainment rides.
- Aerospace & Defense: Spacecraft docking simulation and aerial refueling practice.
- Industrial Manufacturing: Six-axis linkage machine tools, dynamic test benches, and flexible robotics.
Why Choose Us
1. Powerful Manufacturer
10,000m² Smart Factory meeting ISO9001 quality management standards. Direct factory supply offering optimal pricing and high quality. Served over 2,000 clients across 50+ countries.
2. Attentive Full Service
Complete solution provider for VR setups, AR interactive parks, immersive projections, showroom displays, and custom software development.
3. Excellent R&D Team
100+ R&D and design talents ready to customize project solutions. 24/7 online after-sales support backed by a technical team with 13 years of production experience.
4. Quality Commitment
High durability equipment with on-time delivery guaranteed. In-house developed unique technology and proprietary motion software.
5. Custom Software & Development
Tailored development: share your ideas and requirements, and our team will provide one-on-one exclusive customization services.

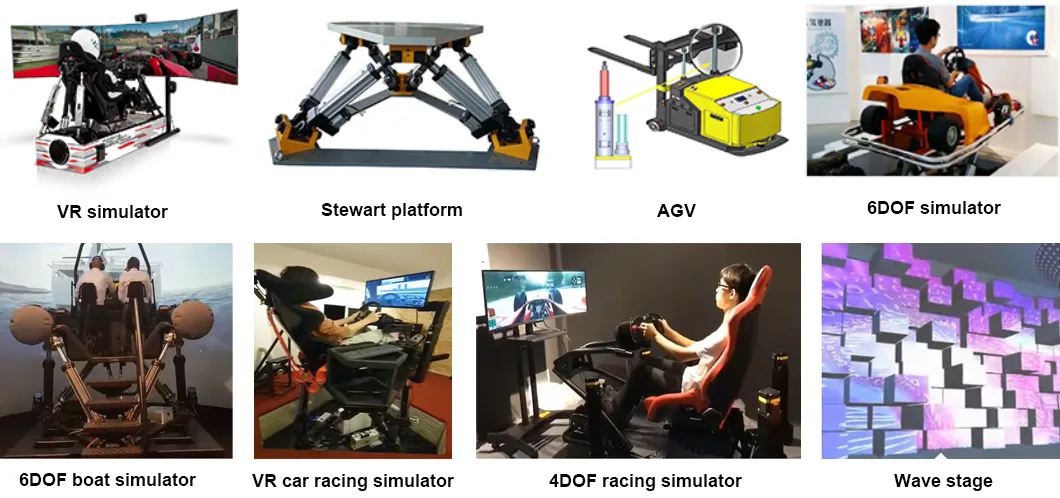

Electric servo cylinders are widely utilized across mechanical fields to drive automation. Key application sectors include mechanical device manufacturing, heavy-duty industries, automated production lines, automotive manufacturing, intelligent robotics, medical devices, gaming and entertainment setups, solar trackers, printing/3D printing, textiles, packaging, and logistics.

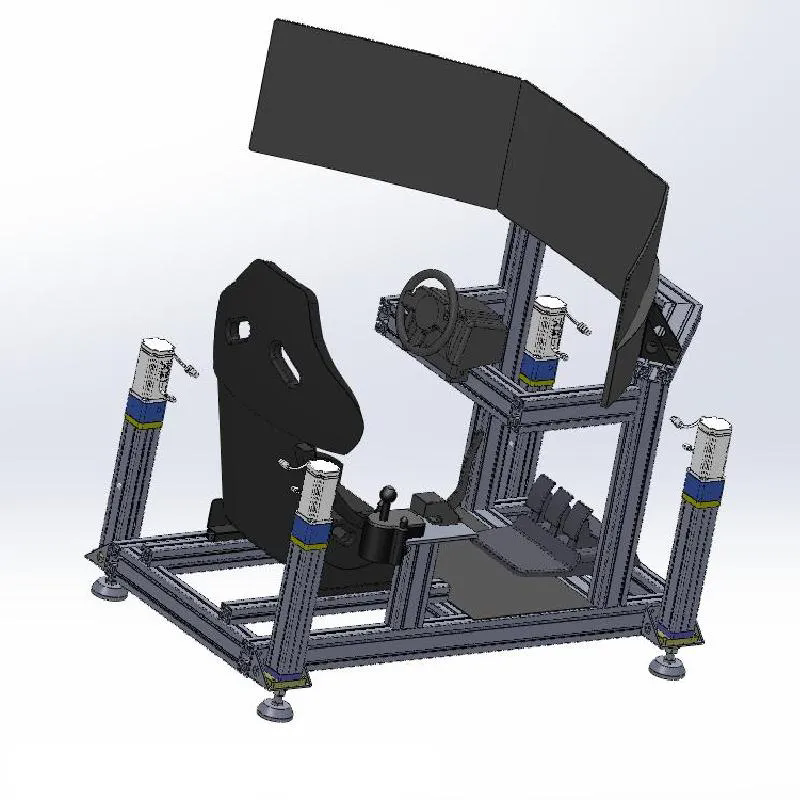

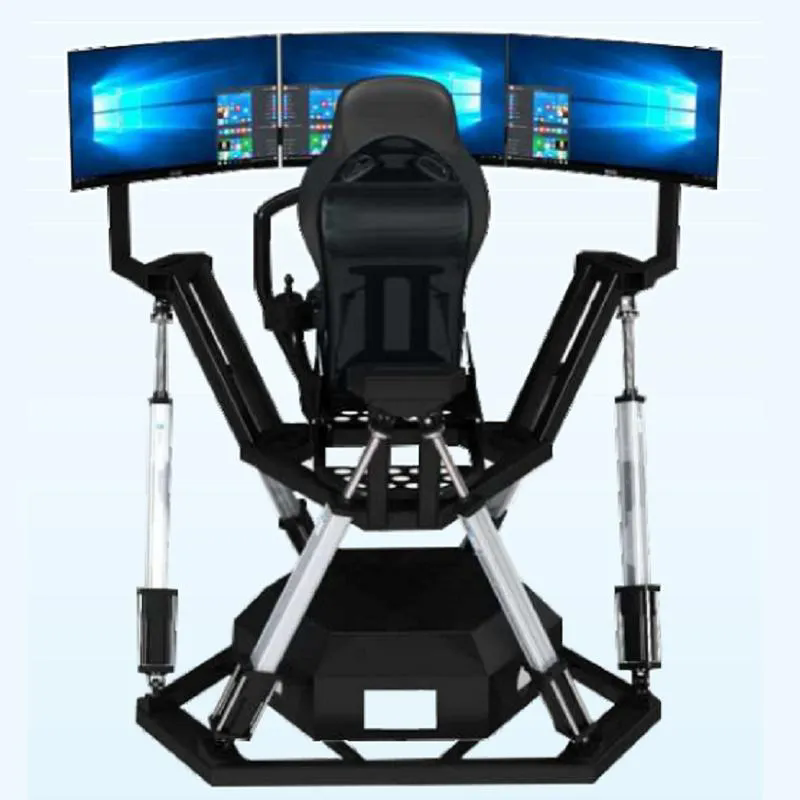

Specializing in electric servo cylinder production for over 13 years, our factory features a strong R&D team and expert technical support to assist customers with both standard and custom solutions. We have successfully delivered 6-DOF Stewart platforms, racing car simulators, boat/ship simulators, flight simulators, truck simulators, and linear actuators worldwide.
