6-Dof Indoor Metal Platform with Six Angle Movements for Various Training Simulators Vr Equipment for Home or Shopping Mall Use
Product Description
Six Angle Movements 6-DOF Platform for Various Training Simulators

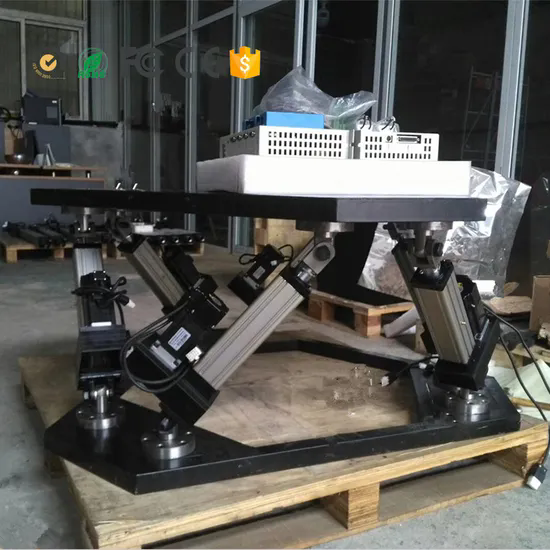

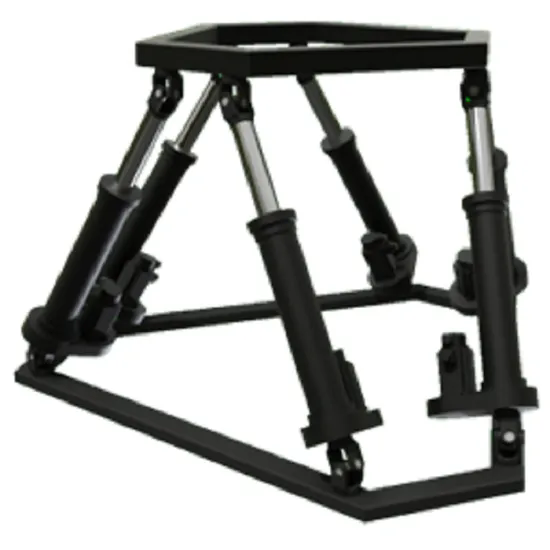

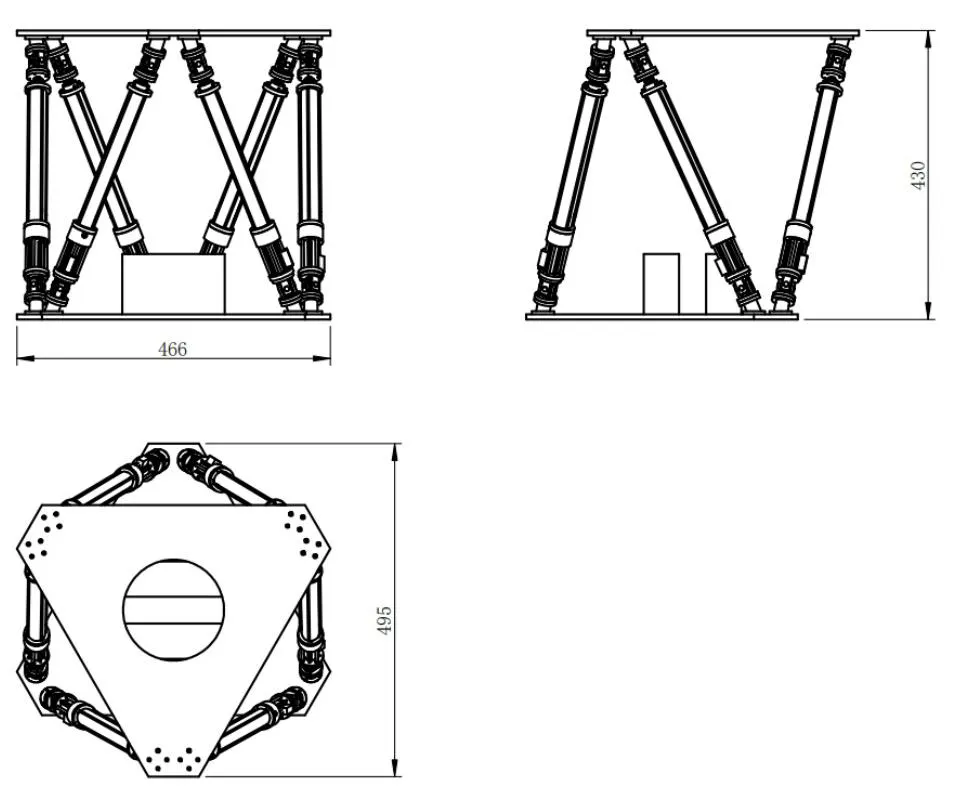

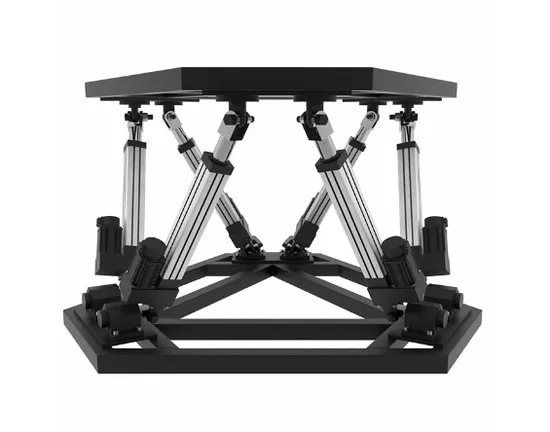

The 6 Degrees Of Freedom (6-DOF) Platform, also known as the Stewart Electric Cylinder Platform (Model: DGR-6D), is composed of six moving cylinders, six universal dumpling chains at the top and bottom, and two structural platforms (top and bottom).
The lower platform of the 6-DOF motion platform is securely fixed on the foundation. Utilizing the telescopic motion of the six support cylinders, the upper platform achieves full 6D motion freedom in space (X, Y, Z, α, β, γ).
Control System Overview
The control system of the 6-DOF simulation platform integrates an HS servo driver, Mbox motion controller, industrial computer, electrical cabinet, and high-spec connecting cables.
HS Servo Driver Functions
- CAN bus motion control: position / speed / torque control, mode switching.
- Fast current loop floating-point CLA kernel processing with excellent dynamic tracking performance.
- RS485 communication interface supporting MODBUS protocol for direct communication with upper computers and touchscreens.
- Built-in proprietary communication protocol supporting CAN bus interface for convenient customization.
- Software allocation, logical settings, and programmable filtering for flexible and reliable control port usage.
- Two analog outputs to observe internal driver status, simplifying on-site debugging.
- Built-in electromagnetic brake control, offering logical and rigorous safety protection against falling.
Mbox Motion Controller Functions
- Ethernet communication interface for high scalability and simplified wiring.
- 6-way ADC input interface, compatible with WffiS upper controllers for DAC board mode control.
- 12 digital outputs supporting programmable parameter digital special effects control.
- 2-way analog outputs supporting continuous, fine-tuned control simulation.
- Multifunctional application of 8-channel digital inputs and interface signals.
- Fully infinite switch mode support with soft limit capabilities for upper limits.
- Easy monitoring and diagnosis with RS232 for local motion control tracking.
- Flexible networking: Single motion control groups connect via Ethernet. RS232 provided for MODBUS expansion.
Note: The data above is for reference only; non-standard custom designs can be tailored according to customer requirements.
Specification
Rated Load: 5KG - 20000KG
| Movement | Max. Displacement / Angle | Max. Speed | Acceleration | Reciprocating Precision |
|---|---|---|---|---|
| UP / DOWN | ±600mm | ±500mm/s | ±5.0m/s | ±0.05mm |
| Back - Forward | ±600mm | ±500mm/s | ±5.0m/s | ±0.05mm |
| Left - Right | ±600mm | ±500mm/s | ±5.0m/s | ±0.05mm |
| Pitch | ±25° | ±40°/s | ±400°/s | ±0.01° |
| Roll | ±25° | ±40°/s | ±400°/s | ±0.01° |
| Yaw | ±25° | ±40°/s | ±400°/s | ±0.01° |
Key Features
- Fully Digital Closed-Loop Servo Control: Professional motion control card ensures smooth motion and highly realistic simulation.
- Flexible Modular Design: Modular combination allows free system integration to fit diverse customer application needs.
- High Precision Transmission System: Optimized component setup delivering overall system efficiency of up to 85%.
Applications
Widely utilized in environments requiring precise 6-DOF motion simulation:
- Virtual Reality & Training Simulators: Flight simulators, ship simulators, naval helicopter takeoff/landing platforms, tank simulators, car driving simulators, train driving simulators, earthquake simulators, dynamic cinema, and entertainment rides.
- Aerospace Operations: Spacecraft docking and aerial refueling simulation.
- Industrial Manufacturing: Six-axis linkage machine tools, flexible robots, and advanced automation equipment.
Additional Machinery Note: Semi-Automatic PET Bottle Blowing Machine / Bottle Making Machine / Bottle Moulding Machine is suitable for producing PET plastic containers and bottles in all shapes.
